Behaviors: Advanced Topics and Examples

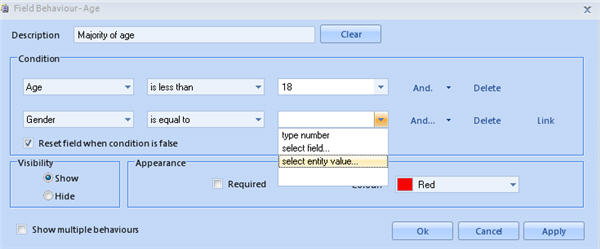

- In the event that the validation should require more than one condition, select the logical operator, which can be "AND" or "OR" to complete the expression.
- In order to nest the existing conditions with parentheses, use the Link button, which will allow the condition to be nested with the one right before it
- To Delete a Condition, click on the Delete button on the same line of the condition that is to be eliminated.
- To include a new behavior on the same field, check the Show Multiple Validations box. After adding each validation, click on the Apply button.
Example
To accept the requirement of any client, he or she must have reached the age of majority.
If a Female is not 18 years old, the age would be shown in red
If a Male is not 18 years old, the age would be shown in blue.
The behavior for the field “Age” is entered:
The first behavior includes conditions for the Female gender AND the identification number.
The second behavior includes conditions for the Male gender AND the identification number.

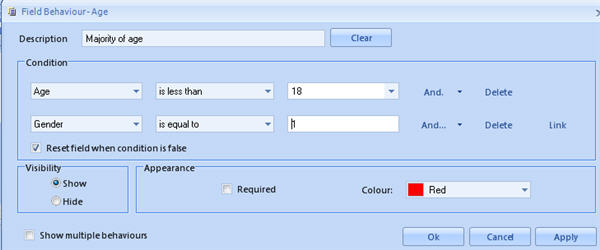

1. Create the behavior for Females:

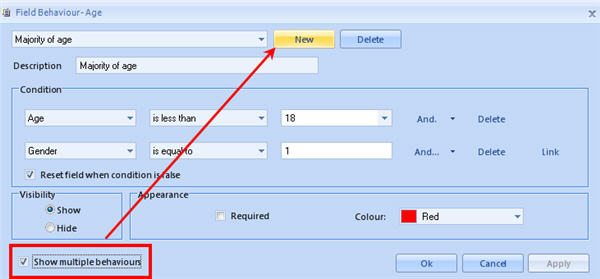

2. Check the Show Multiple Behaviors and click NEW. Then, give a name to the second behavior.

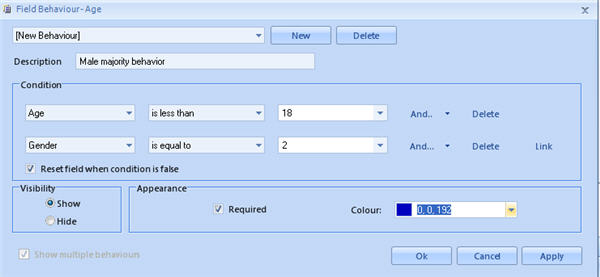

3. Create the Male behavior
Click OK when the changes have been made.

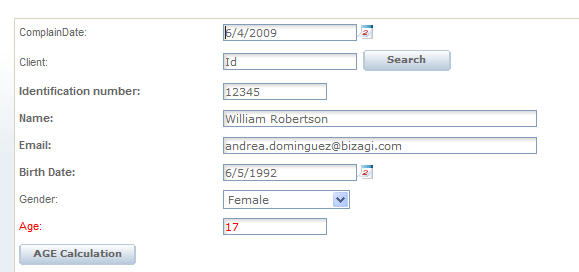

This is how the behavior will be seen in the web application
